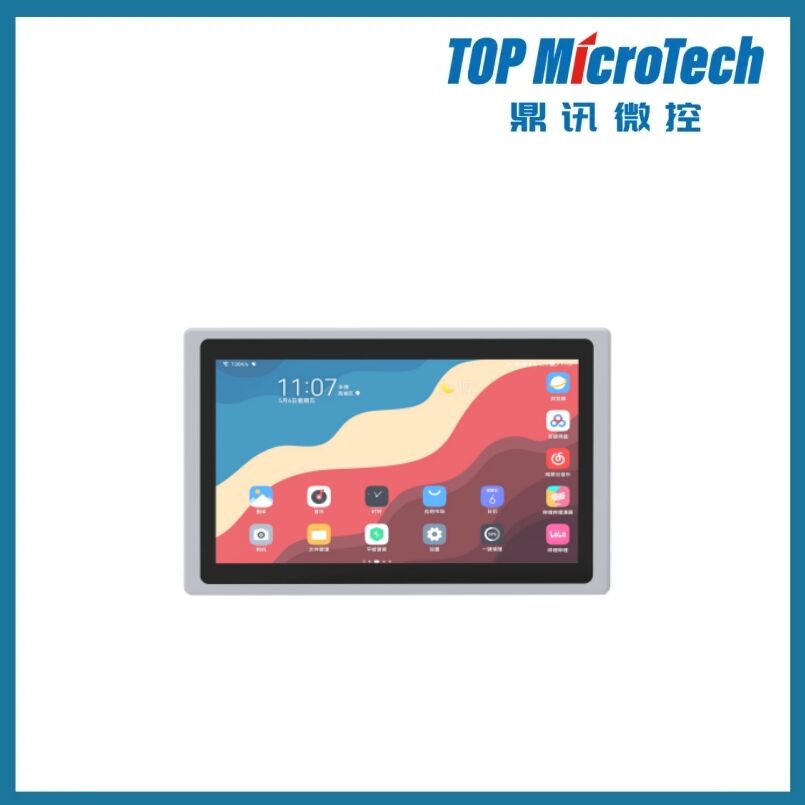

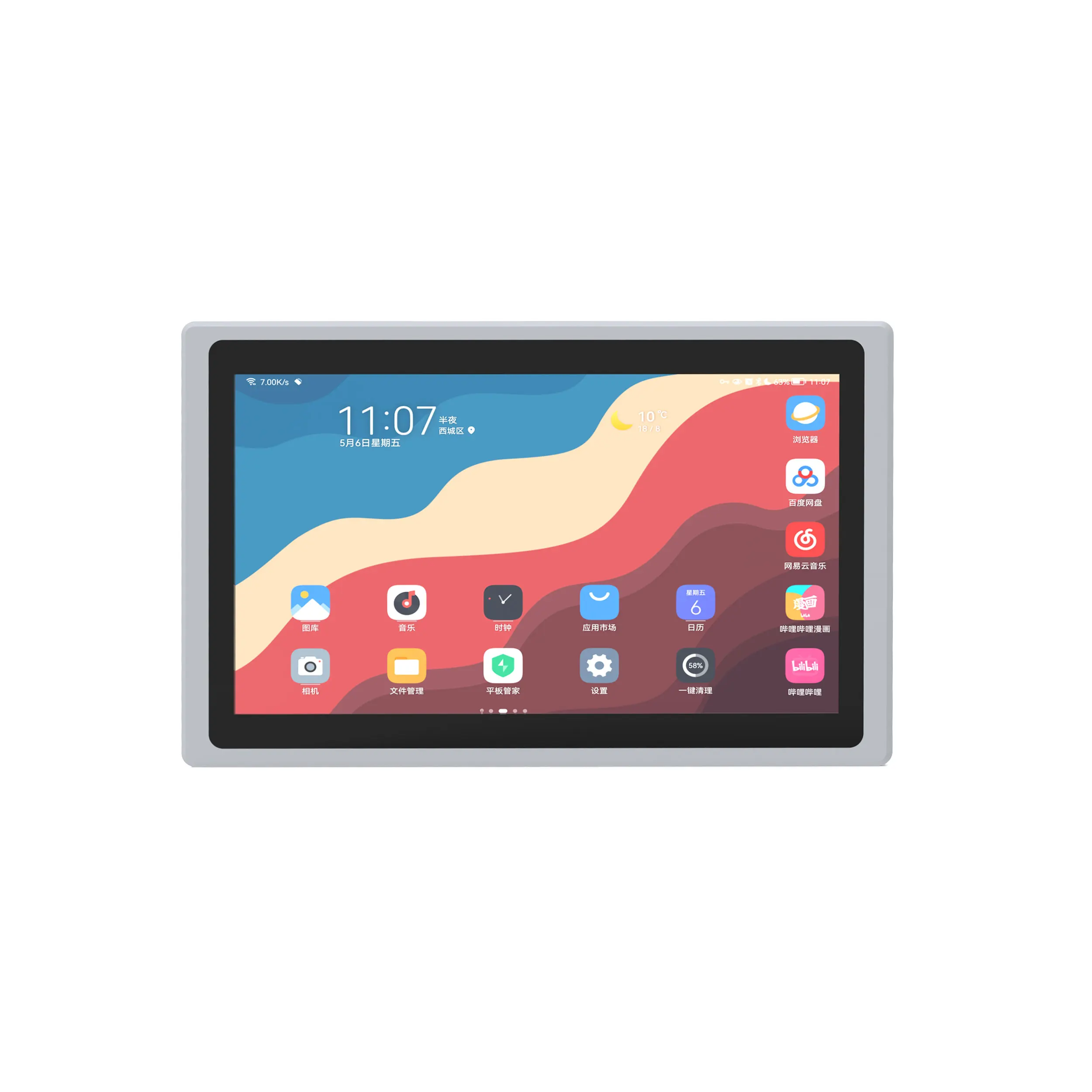

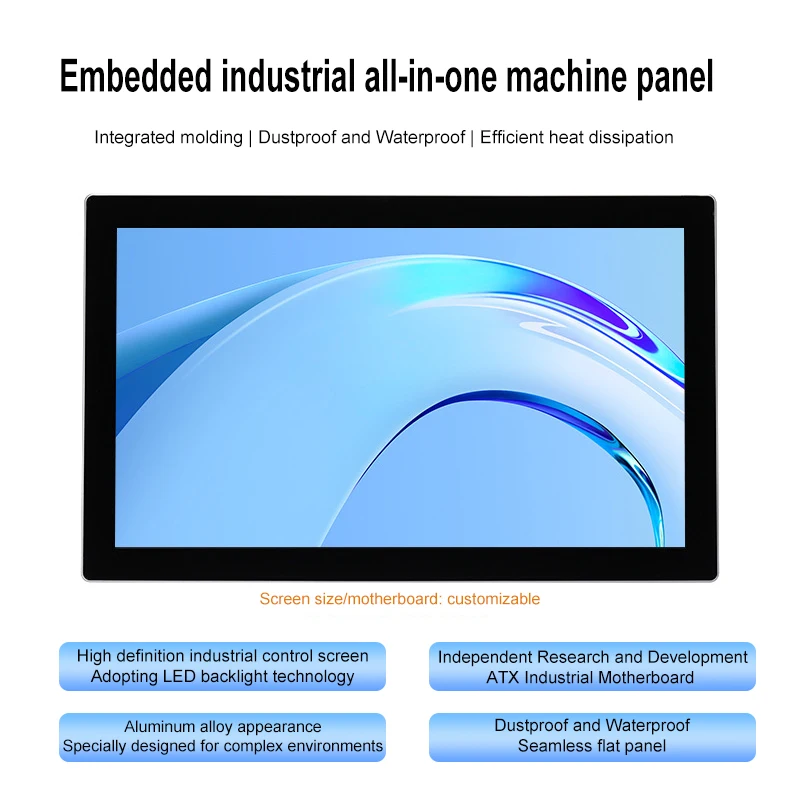

11.6 Inch X86 Windows 11 System All One Panel PC LCD Capacitive Touch Industrial Monitor USB DVI I7 I5 I3 Ip65 Touch Screen
- Overview
- Recommended Products
Products Description
Standard product parameters |
||||
Hardware configuration： |
Model |
YKR-I3-W116 |
||
CPU |
Intel Core I3-6100U |
|||
Internal storage：DDR |
4G； Optional：(4G/8G/16G/32G) |
|||
Hard disk：EMMC |
128G； Optional：(256G/512G SSD, 1T/2T HDD Optional) |
|||
Operating system |

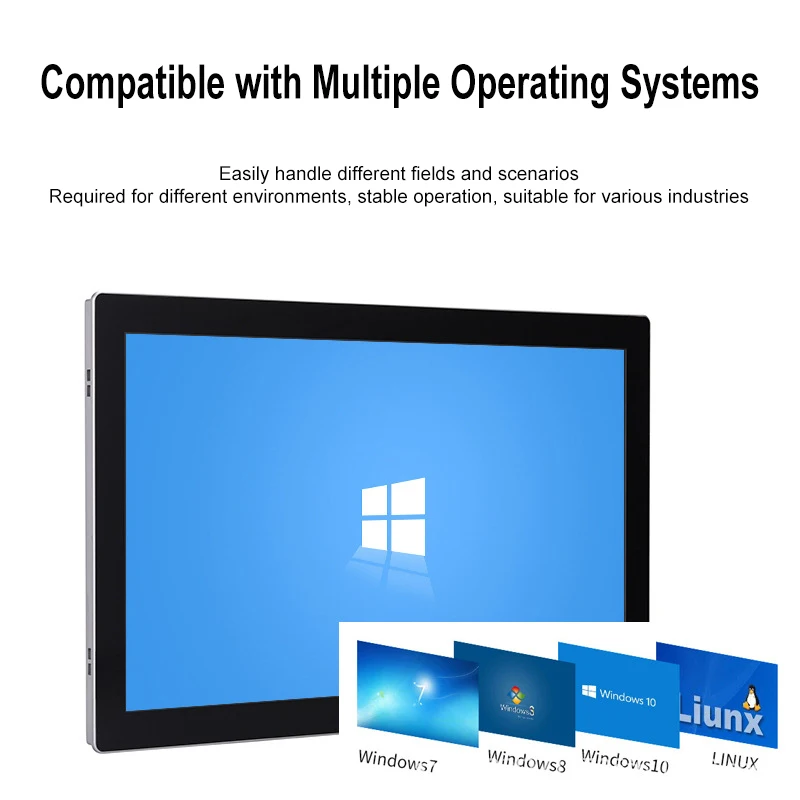

WIN10/11 Optional:(Ubuntu/Centos/Redhat/Debian/Linux） |
|||
Network |
1000M Optional:(2.4GHz / 5GHz / 双频WiFi / BT4.0 / GPS ) |
|||
Screen parameters： |
Size |
11.6 inch |
||
Resolution ratio |
1024*768（16：9） |
|||
Luminance |
300 CD / M2 |
|||
Contrast |
≥ 800：1 |
|||
Refresh rate |
60Hz |
|||
Visual Angle |
Full View 85/85/85/85 (Typ.)(CR≥10) |
|||
Display area |
155.5（W）* 87.5（H）mm |
|||
Touch parameters： |
Touch type |
Capacitive touch screen |
||
Touching method |
Finger /Capacitor pen |
|||
Touch point count |
10 point touch |
|||
Response time |
< 5ms |
|||
Communication mode |
full speed USB 2.0,3.0 |
|||
Clicks |
More than 50 million times |
|||
Surface hardness |
Chemically tempered, Mohs 7 explosion-proof glass |
|||
Reliability parameters： |
Operating temperature |
-10°C~60°C |
||
Storage temperature |
- 20°C~70°C |
|||
Relative humidity |
Humidity: 95% Non-Condensing |
|||
Vibration protection |
IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|||
Waterproofing grade |
Front panel meets IP65 protection level |
|||

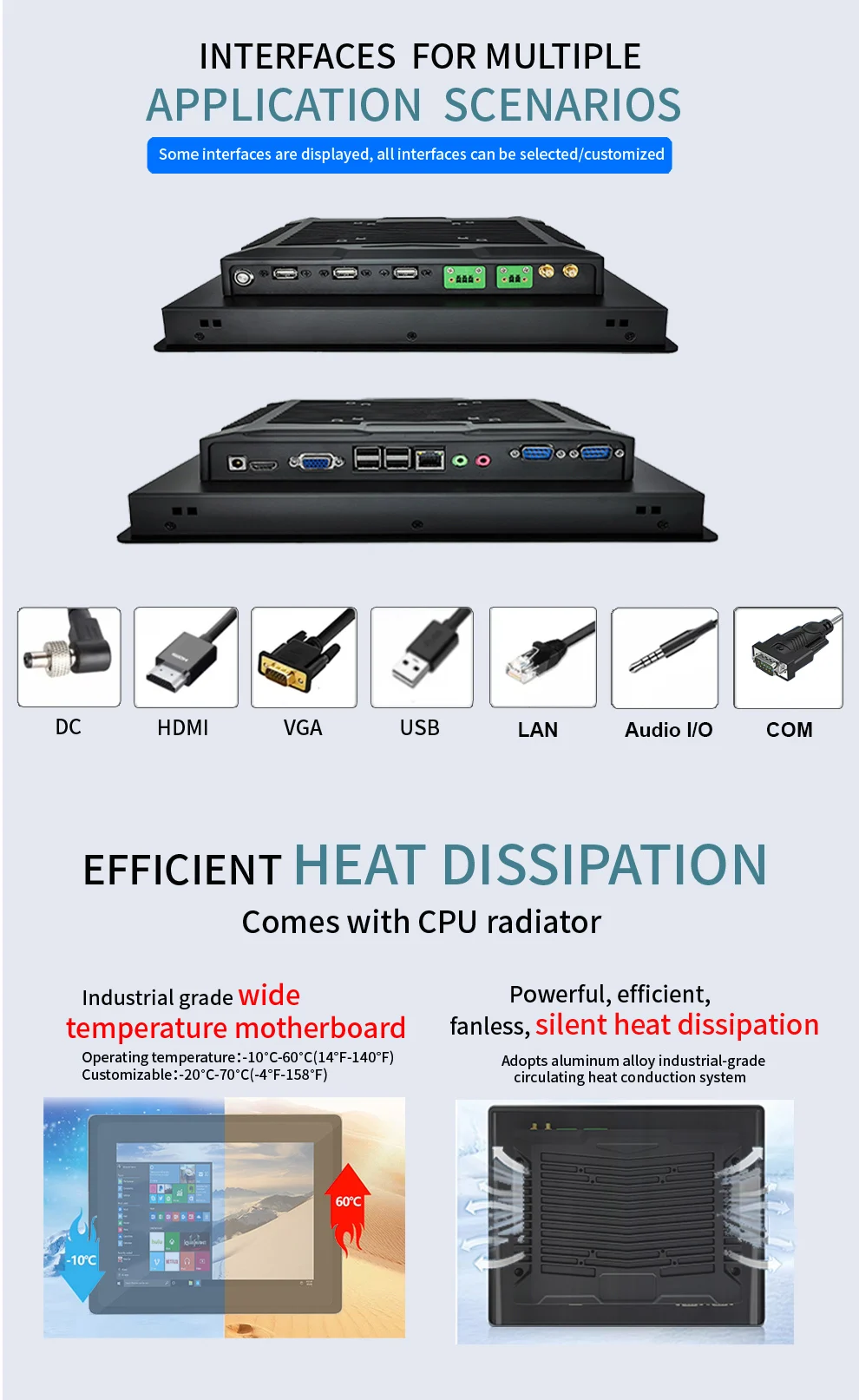

Product interface |
DC |
1*12P Industrial Terminals (Power Supply/RS232*1/RS485*1/GPIO*5) |
||
Power button |
1*DC ,Support wide voltage 12V-36V power supply |
|||
USB |
1*Power button |
|||
RJ45 cable interface |
2*USB 2.0，2*USB 3.0 |
|||
HDMI |
2*LAN,10M/100M/1000M Adaptive Ethernet |
|||
SIM Card slot |
1*HDMI,Support HDMI data output, up to 4K |
|||
VGA |
1*SIM卡Standard interface, supports various standards (depending on 3G/4G module) |
|||
Audio |
1*VGA |
|||
COM |
1*Audio I/O,Support audio input and output, headphone jack: 3.5mm standard interface |
|||
Wi-Fi/BT |
1*RS232 |
|||
Industrial terminal |
2*Wi-Fi 2.4G+5G/BT |
|||
Features

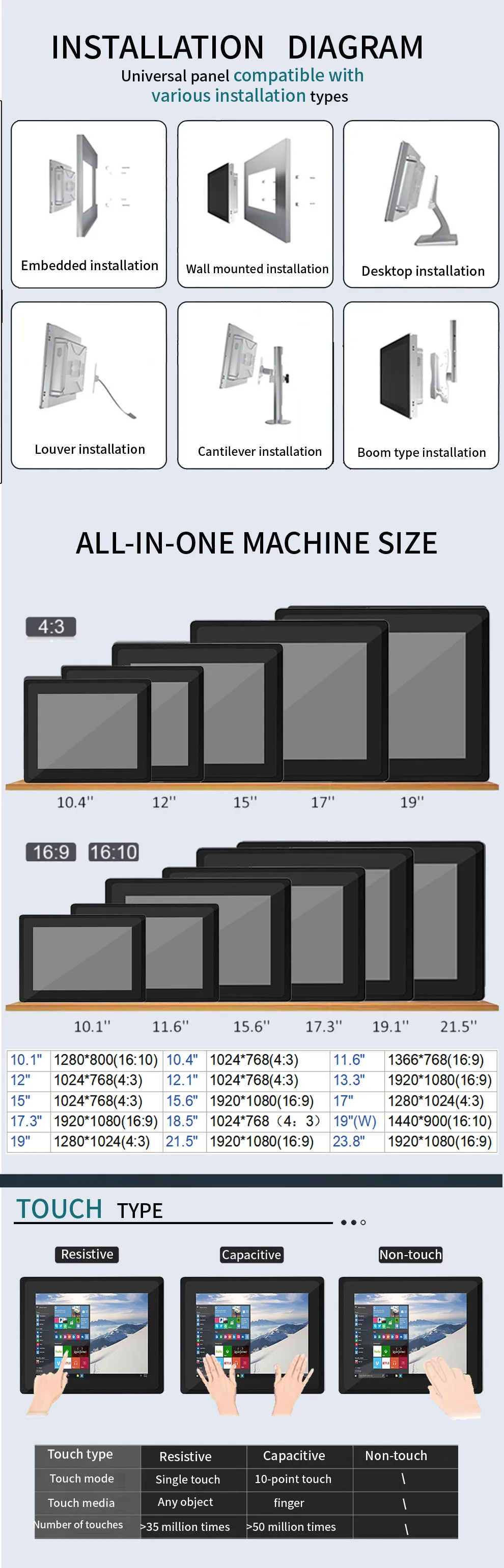

01.Support embedded,wall-mounted,rack-mounted,desktop,VESA support.

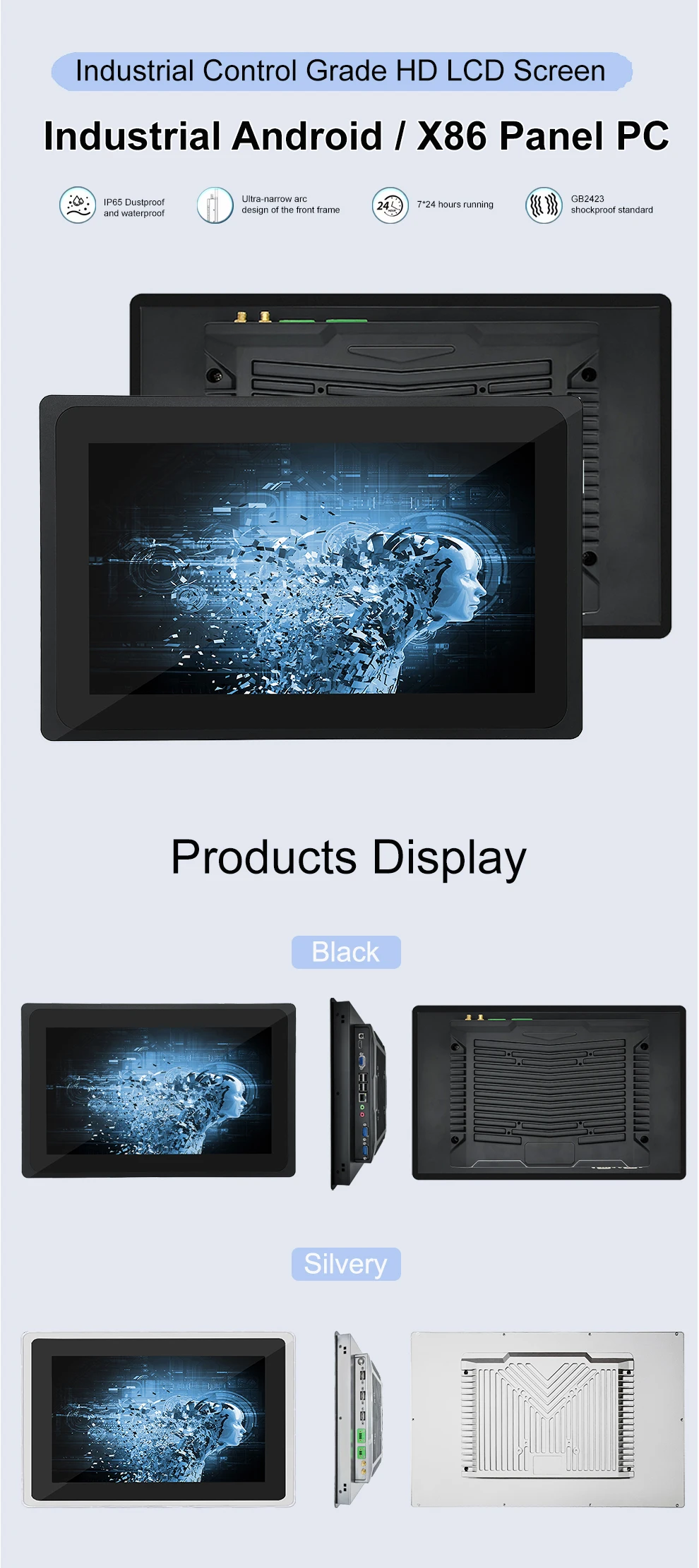

02.Black or silver color optional

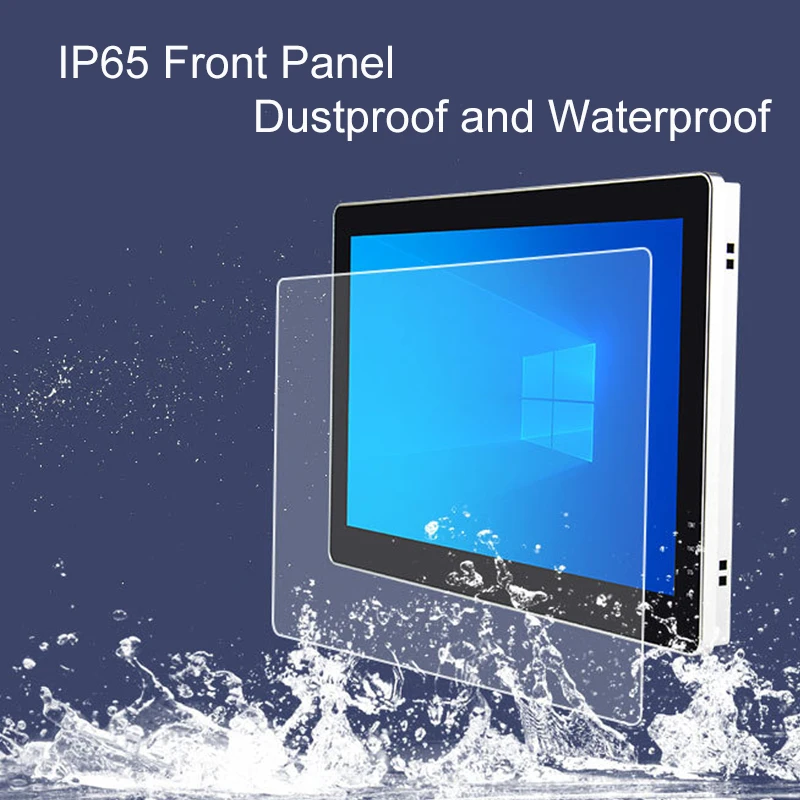

03.IP65 grade water-proof,dust-proof for front panel.
04.Working temperature:-20-80 degree
05.365Days*24hours all-weather working.
06.Support boot strap with electricity
07.3mm bezel thin front panel,embedded cabinet suitable.

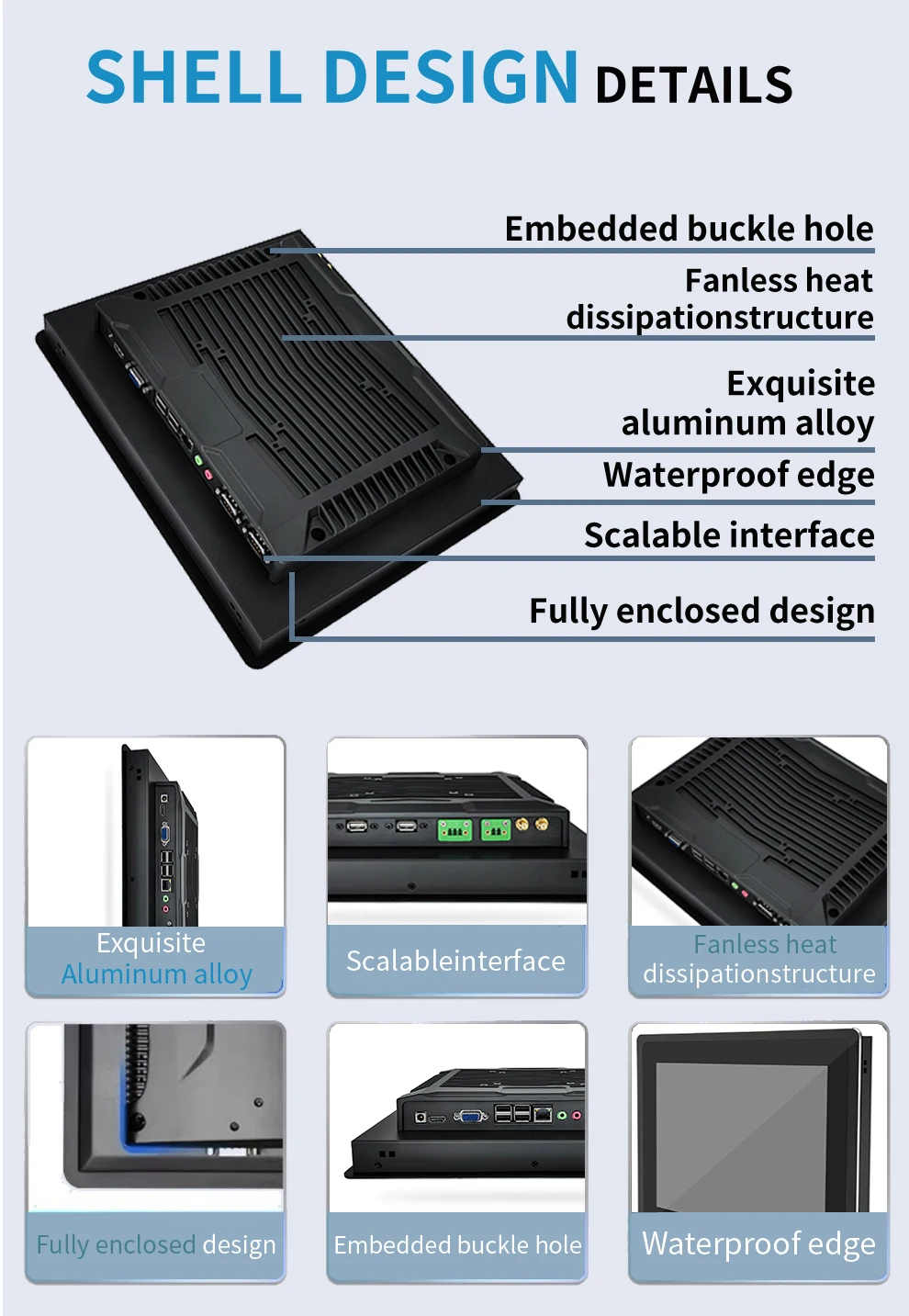

08.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
09.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
10.Compatible with various industrial systems/application.
11.Support non-touch,resistive touch,capacitive touch.
12.Whole system is equipped with WI-FI module,more convennient.
13.Build-in 2.0 speakers,support 1080P HD video.
14.CE,FCC,CCC,ROHS certificate.
15.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
16.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
17.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
18.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
Product packaging
Transport and Packing process
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
500PCS or More orders:5-15working days
Professional 360° safe
pack Vacuum bage→5layer corrugated carton→thick pearl cotton protection
Company Profile
FAQ

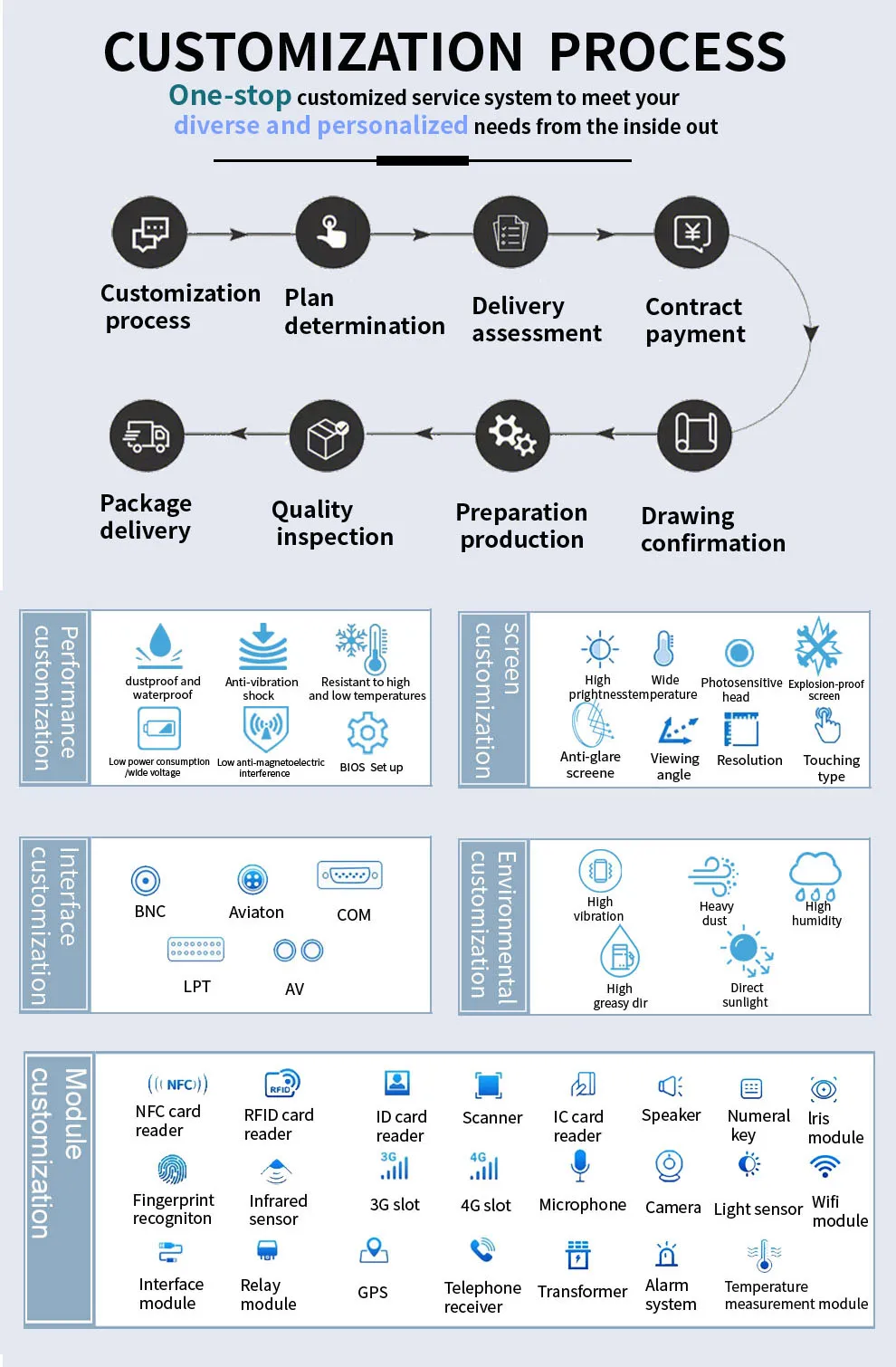

Q: Does OEM and ODM service available for Industrial Panel PC?
A: Yes, both OEM and ODM service are available, we have more than 100 engineer working in the R&D dept, which able to offer variety customizing option case by case for customers.
Q: Product application
A: It is widely used for ATM, KIOSKS, HOTEL, VENDING MACHINE,etc
Area: Industrial & Automation control, Power automation, Education, Exhibition, Advertisement, POS cash machine, Transport and Ticketing, Enterainment, Food and Beverage ordering.
Q: What kind of your company will be?
A: We are the leading company to focus on the Touch panel PC, both available for Capacitive touch and Resistive touch, we are the factory (10000SQM), with more than 300 people working in the company. All products is developed and designed by our engineers, there are more than 100 engineer working in the hardware and software, i believe we have very strong technical back up and support for our clients to do the customizing cases.
Q: What size of Panel PC available?
A: Regular size will be: 7',8',10.1', 10.4', 11.6',12', 12.1', 13.3', 15',15.6', 17', 17.3', 19', 19.1',21.5' some of the size are in wide screen.
Q: What are the advantage of your products?
1) Famous brand of original panel A grade.
2) Independent research and development of the motherboard
3) Famous brand of Capcitive touch glass
Q: Does logo allowing to be printed on the frame? Do you have MOQ?
A: Yes, logo can be printed on the frame with charge extra moeny, it will be free of charge if quantity upto 100 pcs. We just need the AI file of your logo, we will take care of the rest.
Q: Does sample available?
A: Yes, sample is available, customer need sample to do the test and integration.
